Module: structure/pure/Group

A group can be used to group a couple of widgets and optionally surround them with a border or name the group.

Since:

• 0.8.0 (2012)

Author:

• Christian Mayer

Source:

• structure/pure/Group.js, line 21

Examples

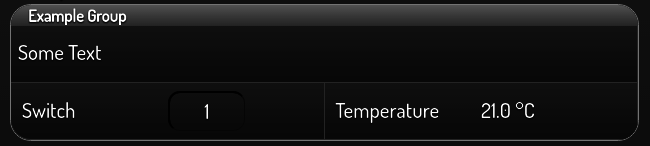

Group with border and name

Group with border and name

 <group name="Example Group">
   <layout colspan="6"/>
   <text><label>Some Text</label></text>
   <switch>
     <layout colspan="3"/>
     <label>Switch</label>
     <address transform="DPT:1.001" mode="readwrite">0/0/0</address>
   </switch>
   <info format="%.1f °C">
     <layout colspan="3"/>
     <label>Temperature</label>
     <address transform="DPT:9.001">0/0/1</address>
   </info>
 </group>

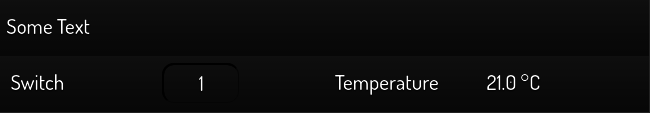

Hidden Group: no border no name

Hidden Group: no border no name

 <group nowidget="true">
   <layout colspan="6"/>
   <text><label>Some Text</label></text>
   <switch>
     <layout colspan="3"/>
     <label>Switch</label>
     <address transform="DPT:1.001" mode="readwrite">0/0/0</address>
   </switch>
   <info format="%.1f °C">
     <layout colspan="3"/>
     <label>Temperature</label>
     <address transform="DPT:9.001">0/0/1</address>
   </info>
 </group>

Requires

• module:structure/pure

Methods

---

<inner> action(path, actor, isCanceled)

Action performed when the group got clicked. If a target is specified in the group attributes
the action will switch to the page defined by the target.

Parameters:

Name	Type	Description
path	String	Internal path of the widget
actor	Element	DOMElement
isCanceled	Boolean	If true the action does nothing

Source:

• structure/pure/Group.js, line 121

---

<inner> create(element, path, flavour, type)

Creates the widget HTML code

Parameters:

Name	Type	Description
element	Element	DOM-Element
path	String	internal path of the widget
flavour	String	Flavour of the widget
type	String	Page type (2d, 3d, ...)

Source:

• structure/pure/Group.js, line 79

Returns:

HTML code

Type

String
