The tr064 Plugin

Available since version: 0.11.0
Author: Christian Mayer

Todo

Automatische Screenshot-Generierung (aus Dummy-Daten)

Description

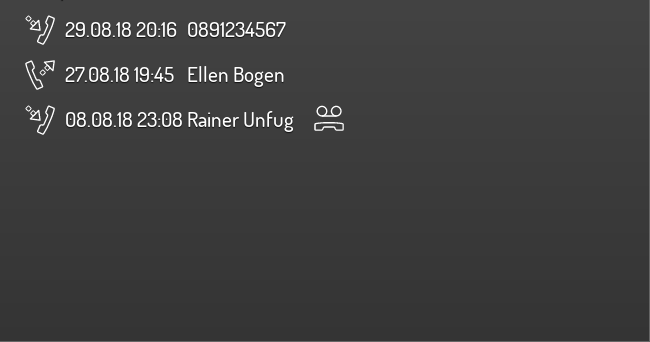

The plugin is an interface to routers that implement the TR-064 protocol, like the widely used Fritz!Box. The calllist widget from this plugin displays a call list that contains the name of the callers (when known to the router) as well as the records of the answering machine.

config/widgets/plugins/tr064/_static/calllist.png

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Pages and structure of CometVisu.

The behaviour and appearance of the powerspectrum plugins can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ..... are mandatory, all the others are optional and be omitted.

Allowed attributes in the calllist-element

Element Attribute
  Name Content Description
calllist device string ID/Name of the device as used in the hidden configuration.
max decimal Maximum numer of entries to fetch from the router.
columns string By semicolon separated list of column types (allowed types: caller, date, name, nameOrCaller, tam, type)
TAM string Icon for telephone answering machine.
TAMColor string
TAMwait string Icon for waiting for telephone answering machine.
TAMwaitColor string
TAMplay string Icon for playing the telephone answering machine.
TAMplayColor string
TAMstop string Icon for stopping the telephone answering machine.
TAMstopColor string
typeIncoming string Icon for incoming call.
typeIncomingColor string
typeMissed string Icon for missed call.
typeMissedColor string
typeOutgoing string Icon for outgoing call.
typeOutgoingColor string
typeActiveIncoming string Icon for active incoming call.
typeActiveIncomingColor string
typeRejectedIncoming string Icon for rejected incoming call.
typeRejectedIncomingColor string
typeActiveOutgoing string Icon for active outgoing call.
typeActiveOutgoingColor string
typeUnknown string Icon for unknown call type.
typeUnknownColor string
refresh decimal Sets the update rate for the call list in seconds
config/widgets/plugins/tr064/_static/en_config_widgets_plugins_tr064_index_editor_attributes.png

Attribute im Editor (vereinfachte Ansicht) [1]

Allowed child-elements und their attributes

Element Attribute
Structure Name Content Description
calllist
  • layout
colspan decimal Amount of coloumns this widget sould be wide.
colspan-m decimal Overrules the amount of coloumns on a medium screen.
colspan-s decimal Overrules the amount of coloumns on a small screen.
rowspan decimal Amount of rows this widget should be high.
x string Horizontal position of the widget for 2D pages.
x-s string Horizontal position of the widget for 2D pages on a small screen.
x-m string Horizontal position of the widget for 2D pages on a medium screen.
y string Vertical position of the widget for 2D pages.
y-s string Vertical position of the widget for 2D pages on a small screen.
y-m string Vertical position of the widget for 2D pages on a medium screen.
z string Reserved for future use.
width string Width for the widget for 2D pages.
width-s string Width for the widget for 2D pages on a small screen.
width-m string Width for the widget for 2D pages on a medium screen.
scale true or false Enable/Disable scaling layout values relative to backdrop on 2d pages (default: true).
scale-s true or false Enable/Disable scaling layout values relative to backdrop on 2d pages on a small screen (default: true).
scale-m true or false Enable/Disable scaling layout values relative to backdrop on 2d pages on a medium screen (default: true).
Element Attribute
Structure Name Content Description
calllist
  • label
  • icon
name string
type string
flavour string Selection of a display variant. See also Flavour.
color string
styling string Change the color of the dispayed value depending on its value. See also Styling
class string Add this value to the CSS class so that it can be formated by a user provided style sheet.
calllist
  • label
    • #text
  string Text to display a label for the widget.
Element Attribute
Structure Name Content Description
calllist
  • address
transform string
mode disable, read, write or readwrite
variant string
format-pos decimal
calllist
  • address
    • #text
  string The GA (like: 12/0/7) for KNX-backends or the item name for openHAB-backend
config/widgets/plugins/tr064/_static/en_config_widgets_plugins_tr064_index_editor_elements.png

Elemente im Editor

XML syntax

Alternatively it is possible to manually add the tr064 plugin entry to the visu_config.xml.

Caution

In the config only the UTF-8 charset is allowed. So an editor that is set to UTF-8 mode must be used.

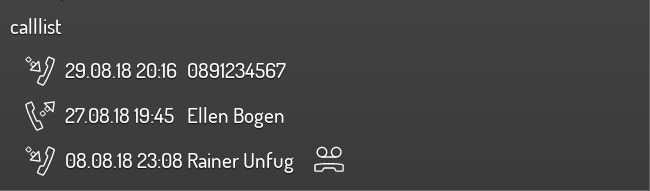

The minimale example code for the calllist widget to create the shown screenshot is:

<?xml version="1.0" encoding="UTF-8"?>
<meta>
    <plugins>
        <plugin name="tr064" />
    </plugins>
</meta>
<page name="TR-064" type="text">
    <calllist device="fritzbox">
        <label>calllist</label>
    </calllist>
</page>
calllist, einfaches Beispiel

calllist, einfaches Beispiel

...
<meta>
    <plugins>
        <plugin name="tr064"/>
    </plugins>
</meta>
...
<calllist device="fritzbox">
    <label>calllist</label>
</calllist>

Prerequisites / setup of the server

To be able to use the plugin the server must support PHP with the extension of the SoapClient package.

On debian based systems it means that the php-soap package must be installed.

Setup of the Fritz!Box

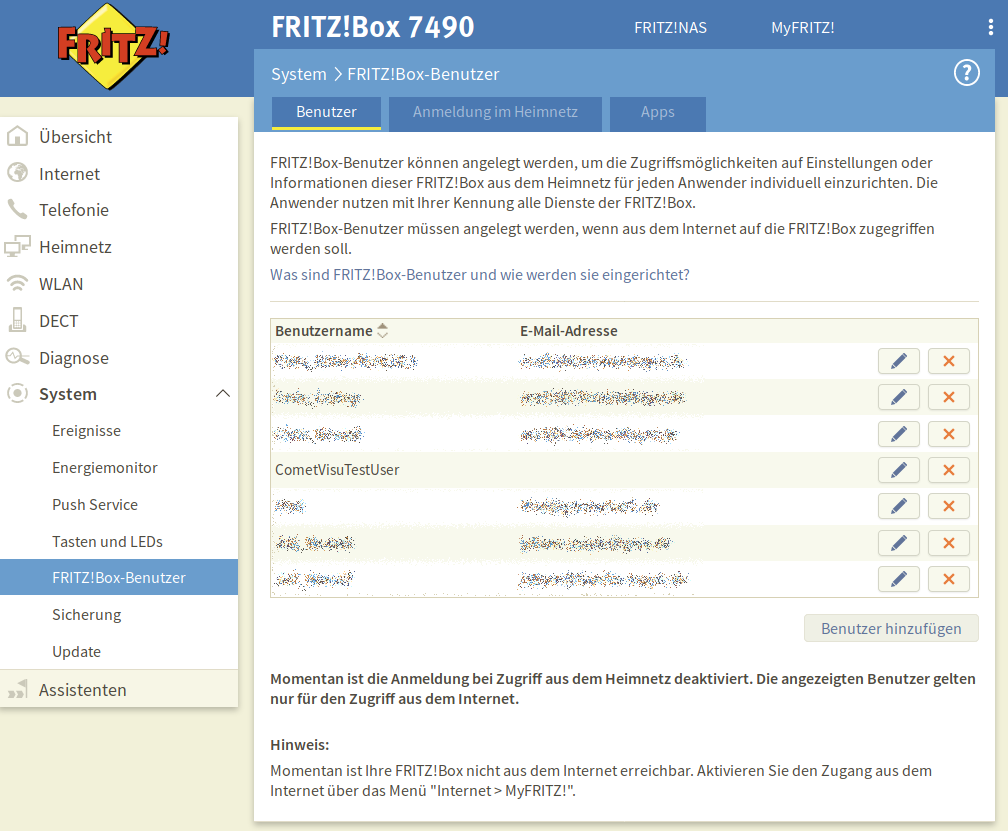

To get access to the call list of the Fritz!Box a user with according permissons must be created (or an existing user account must be used). This is possible on the user page:

../../../../_images/fritzbox_overview.png

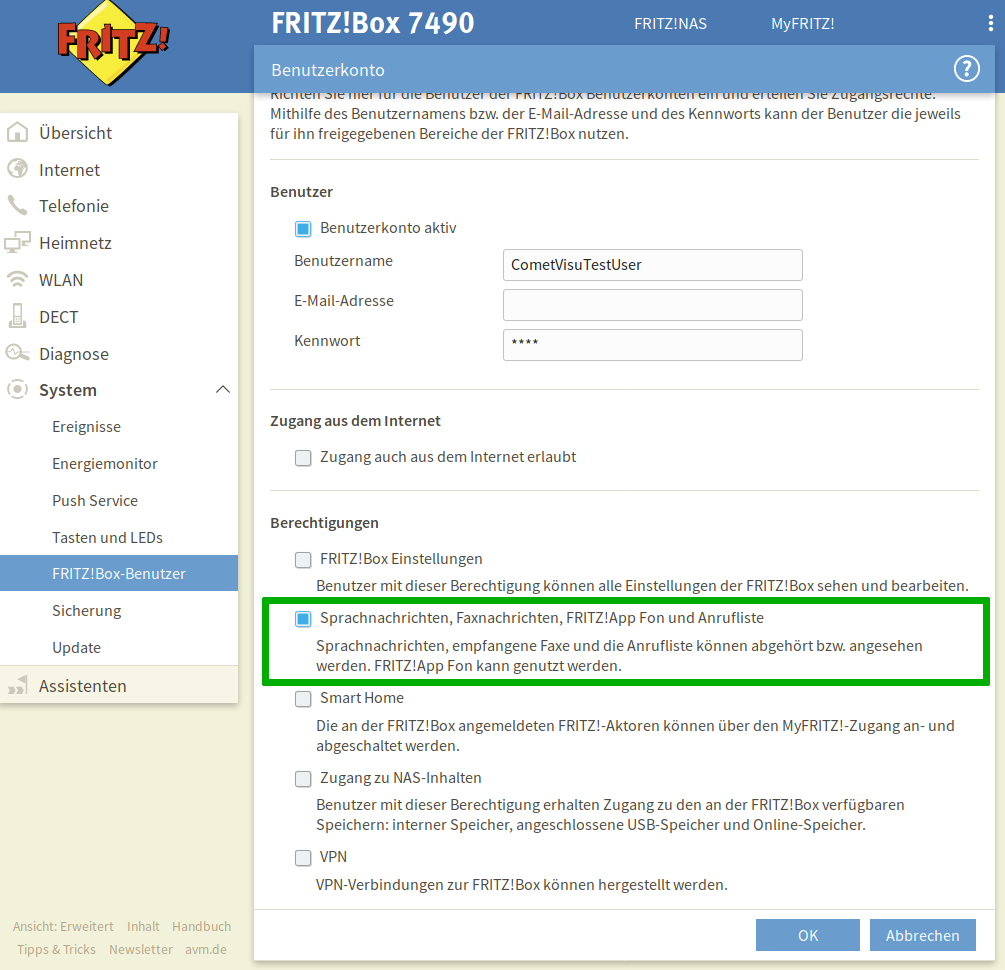

The user itself needs the rights to access the call list:

../../../../_images/fritzbox_user.png

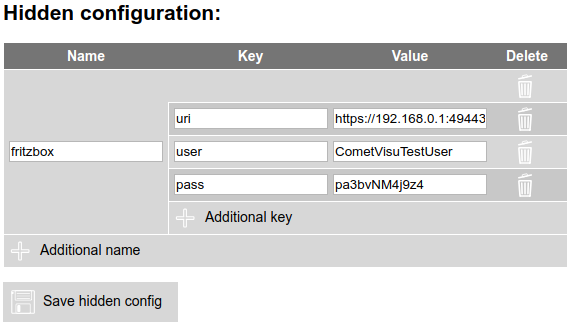

The plugin needs to know the credentials to be able to use this user. This uses the “hidden configuration” infrastructure which can be accessed by the CometVisu manager [2].

../../../../_images/hidden_config_en.png

The used name must be given in the calllist widget in the attribute device.

The key and value pairs of the hidden configuration” are:

Key Value Example
uri The URI to access the TR-064 interface https://192.168.0.1:49443/
user The username for the TR-064 access CometVisuTestUser
pass The password for the TR-64 access pa3bvNM4j9z4
selfsigned Allow self signed certificates when true false

Apart from the manager it is possible to edit the file config/hidden.php manually and add a line like:

<?php
// File for configurations that shouldn't be shared with the user
$hidden = array(
  'fritzbox' => array('uri' => 'https://192.168.0.1:49443/', 'user' => 'CometVisuTestUser', 'pass' => 'pa3bvNM4j9z4')
);
?>

Hint

When the connection to the router is secured by SSL (i.e. the URI starts with https) it is usual that selfsigned must be set to true as a router in the home network will work usually with a self signed certificate.

Footnotes

[1]In the simple view some things might be not visible. The expert view will show all entries.
[2]

The “hidden configuration” contains configuration data that is not transmitted to the client any stay on the server. So there information is “hidden” to the user. On the server it is still readable in clear text. This is also true for the manager.

This by itself doesn’t create a secure environment, but it supports building one. There at least the manager must be inaccessible to the user.
