The UrlTrigger widget

Available since version: 2012

Author: Christian Mayer

Description

The UrlTrigger widget adds a button to the visualization that queries data from a URL in the background.

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Pages and structure of CometVisu.

The behaviour and appearance of the UrlTrigger widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ..... are mandatory, all the others are optional and be omitted.

Allowed attributes in the UrlTrigger-element

Element	Attribute
	Name	Content	Description
urltrigger	value	string
	mapping	string	Map the bus value to a different value, text or symbol for displaying. See also Mapping
	styling	string	Change the color of the dispayed value depending on its value. See also Styling
	align	left, right or center
	url	URI
	params	string
	flavour	string	Selection of a display variant. See also Flavour.
	bind_click_to_widget	true or false	use the whole widget area to react on click events

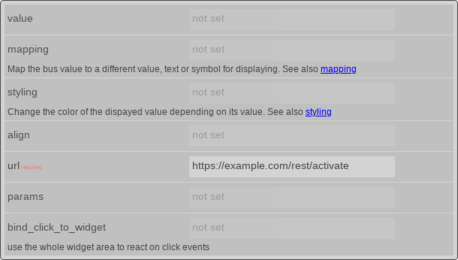

Attributes in the editor (simple view) [1]

Allowed child-elements und their attributes

Element	Attribute
Structure	Name	Content	Description
urltrigger layout	colspan	decimal	Amount of coloumns this widget sould be wide.
	colspan-m	decimal	Overrules the amount of coloumns on a medium screen.
	colspan-s	decimal	Overrules the amount of coloumns on a small screen.
	rowspan	decimal	Amount of rows this widget should be high.
	x	string	Horizontal position of the widget for 2D pages.
	x-s	string	Horizontal position of the widget for 2D pages on a small screen.
	x-m	string	Horizontal position of the widget for 2D pages on a medium screen.
	y	string	Vertical position of the widget for 2D pages.
	y-s	string	Vertical position of the widget for 2D pages on a small screen.
	y-m	string	Vertical position of the widget for 2D pages on a medium screen.
	z	string	Reserved for future use.
	width	string	Width for the widget for 2D pages.
	width-s	string	Width for the widget for 2D pages on a small screen.
	width-m	string	Width for the widget for 2D pages on a medium screen.
	scale	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages (default: true).
	scale-s	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a small screen (default: true).
	scale-m	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a medium screen (default: true).

Element	Attribute
Structure	Name	Content	Description
urltrigger label icon	name	string
	type	string
	flavour	string	Selection of a display variant. See also Flavour.
	color	string
	styling	string	Change the color of the dispayed value depending on its value. See also Styling
	class	string	Add this value to the CSS class so that it can be formated by a user provided style sheet.
urltrigger label #text		string	Text to display a label for the widget.

Elements in the editor

Examples

It is possible to manually edit the visu_config.xml and add an entry for the UrlTrigger widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

Footnotes

[1]	The simple view might not show everything. To see all elements/attributes use the expert view.
